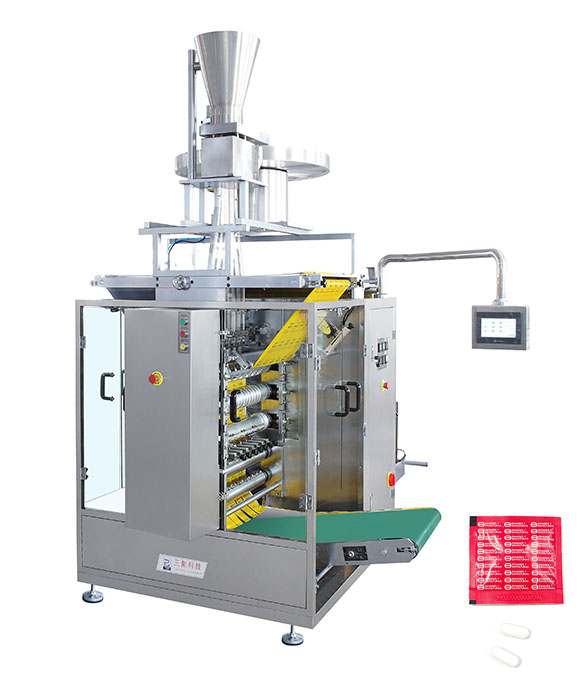

This machine applies to medicine, food, daily-use chemical industry, such as unbonded pills in materials, and measurement requirements of small bags automatic packaging, particularly suitable for all kinds of proprietary Chinese medicines and water pills.
1) Extremely efficient, high power, low noise, easy to maintain and has a long life span.
2）Roller heat sealing, four-side sealing, high speed multi-bag packing.
3) Easy to adjust, precise in measurement, requires a simple procedure for pouch length adjustment without changing the mould. Functions can be regulated for longitudinal sealing, transverse sealing, filling, notch cutting, longitudinal cutting, fracture line making and transverse cutting with the advanced technology for our man-machine interface.
4) Accuracy in page correcting, automatic counting and photoelectric tracking system is adopted to ensure the automatic correcting the double face printing design on packing bags.
5) Reliable performance, convenient to operate and fully automatic. A PLC is used for automatic control and a frequency changer makes speed adjusting even easier.
6) Applicable to a wide using: suitable for most of the complex film packing materials.
|
Bag length |
50-150mm(L) （adjustable） |
|
Bag width |
40-105mm(W) |
|
Packing speed |
30-40bags/min (6lines) depend on pouch size and material |
|
Measuring range |
1-80ml |
|
Cutting fashion |
Flat cutting |
|
Sealing fashion |
4 side sealing |
|
Applicable film |
PET/AL/PE PET/PE NY/AL/PE NY/PE |
|
Max width of film roll |
900mm |
|
Max film roll diameter |
Φ300mm |
|
Film roll core diameter |
Φ75 mm |
|
Power voltage |
380V/ 3 phase 4 wires 50HZ |
|
Power |
12KW |
|
Package size |
(L)1650mm×(W)1500mm×(H)2200mm |
|
G.W |
1500KG |
