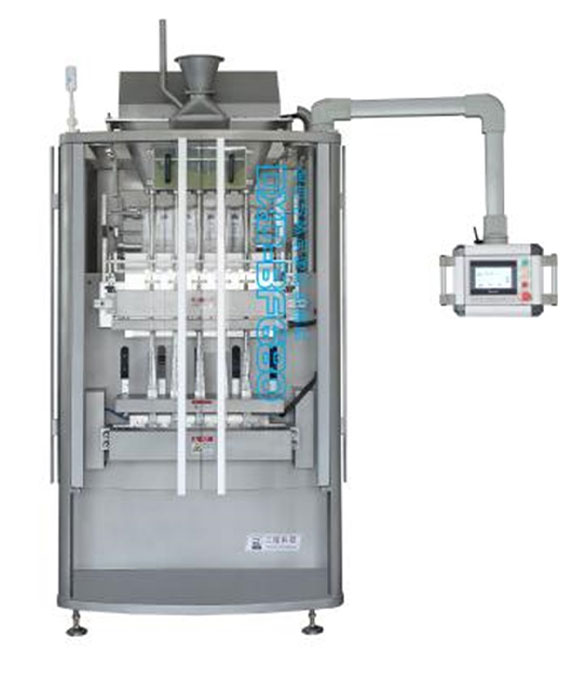

SANYANG's Automatic Multi-row Powder Sachet Filling Packaging Machine is widely used in pharmaceutical and food industry, the unique design makes the packing speed up to 50 bags/min.
- Servo synchronous technology, efficiency increased by 40%.
- With automatic temperature control function, precision ±1℃.
- Highly automated production with PLC system control.
- Combined sealing knife design ensures the firmness and beauty of sealing.
| Model | DXD-BF800 |
| Lanes number | 6-10 lanes |
| Packing material | Powder |
| Packing speed | 20-50 bags/min/lane |
| Filling capacity | 0.5-50gram/bag |
| Packing film | PET/ALIPE、PET/PE、NYIAL/PE、NY/PE 等 |
| Bag size | L:45-160mm W:24-60 |
| Film width | Max.680mm |
| Sealing type | Back sealing stick type |
| Power supply | 380V 3P 4 W 50HZ (do as customer's request) |
| Power | 8.8KW |
| Air consumption | 0.8MPA 0.8m³/min |
| Dimension | 1600×1800×2600mm |
| Weight | 2000KG |
