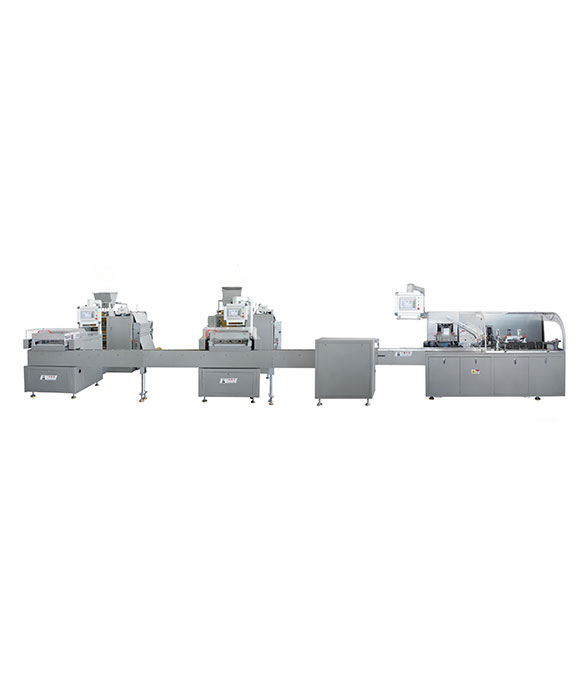

Tablets Four Side Sealing Sachet Carton Packing Production Line is suitable for the automatic packaging of unbonded pill materials in the pharmaceutical, food, daily chemical and other industries, as well as small bags with metering requirements. It is particularly suitable for various Chinese patent medicines and water pills. Its packaging speed is high, up to 20 to 40 bags per minute, and the filling volume of each bag is up to 50 grams; the sealing method is four-side sealing.
Tablets Four Side Sealing Sachet Carton Packing Production Line is suitable for packaging liquid materials in the pharmaceutical industry and other industries, and can automatically pack small bags according to metering requirements.
- Adopt roller heat sealing and four-side sealing technology to achieve multi-bag packaging.
- The inverter speed regulation production speed can reach 40 bags/minute.
- Equipped with automatic counting and photoelectric tracking system
- Fully automatic operation, using PLC automatic control
|
Model |
DXDO-P900E |
|
Lanes number |
4-8 lanes |
|
Packing material |
Tablets1-2pcs |
|
Packing speed |
20-40bags/min/lane |
|
Filling capacity |
1-50gram/bag |
|
Packing film |
PET/AL/PE、PET/PE、NY/AL/PE、NY/PE etc. |
|
Bag size |
L:50-150mm W:30-105 |
|
Film width |
Max.900mm |
|
Film core diameter |
76mm |
|
Max film roll diameter |
Φ300mm |
|
Sealing type |
Four side sealing |
|
Power supply |
380V 3P 4W50HZ(do as customer's request) |
|
Power |
15KW |
|
Air consumption |
0.8MPA 0.8m³/min |
|
Dimension |
(L)2200mm×(W)1800mm×(H)2000mm |
|
Weight |
1500KG |
|
Model |
SYZ-120 |
|
|
Encasing speed |
30-100 Cartons/min |
|
|
Sachet quantity |
1-12 bags, Base on sachet or pouch size |
|
|
Carton |
Quality requirement |
250-350g/m², Base on carton size |
|
Dimension range(LxWXH) |
(70-180)mm×(35-85)mm×14-50)mm |
|
|
Leaflet |
Quality requirement |
60-70g/m² |
|
Unfolded leaflet specification |
(80-250)mm×(90-170)mm |
|
|
Fold range |
【1-4】 Fold |
|
|
Compressed air |
Working pressure |
≥0.6Mpa |
|
Air consumption |
260-300L/min |
|
|
Power supply |
220V 50Hz |
|
|
Motor power |
2.2kw |
|
|
Machine dimension (L×W×H) |
4200mm×1050mm×1600mm |
|
|
Machine weight |
1600kg |
|
