DXD-YL900 Liquid Four Side Sealing Sachet Carton Packing Production Line

DXD-YL900 Liquid Four Side Sealing Sachet Carton Packing Production Line





Usage



The Liquid Four Side Sealing Sachet Carton Packing Production Line has the functions of automatic feeding, filling, bag making, slitting and tearing, batch number printing, online weighing, packaging correction, bag taking, conveying, bag stacking, leaking bag removal, carton forming, unpacking, bagging, batch number printing, sealing, etc.







Features



The packaging speed of the liquid four-side sealed packaging machine reaches 20-50 bags/minute/channel, and the packaging speed of the carton packaging machine is stable at more than 30-100 boxes/minute. The four-side sealed liquid packaging machine is easy to adjust and has accurate measurement.



The bag length can be adjusted with a simple procedure without changing the mold. It adopts advanced human-machine interface technology, and can adjust the functions of longitudinal sealing, transverse sealing, filling, grooving, longitudinal cutting, line breaking, and transverse cutting.


Through the linkage of the fully automatic liquid back-seal packaging machine and the automatic cartoning machine, the entire packaging process has been greatly optimized. After the liquid product is packaged with the back seal, it directly enters the cartoning machine for cartoning operation, without manual transfer or waiting, which greatly reduces the production time. Thanks to the use of advanced filling, sealing and cartoning technologies, as well as precise control systems and sensors, the linked production line can ensure the accuracy and consistency of each packaged product.







DXDO-Y900E Main Technical Parameters



Model

DXDO-Y900E

Lanes number

5-10 lanes

Packing material

Liquid

Packing speed

20-50bags/min/lane

Filling capacity

1-50gram/bag

Packing film

PET/AL/PE、PET/PE、NY/AL/PE、NY/PE etc.

Bag size

L:50-150mm W:30-105

Film width

Max.900mm

Sealing type

Four side sealing

Power supply

380V 3P 4W50HZ(do as customer's request)

Power

15-20KW

Air consumption

0.8MPA 0.8m³/min

Dimension

(L)2200mm×(W)1800mm×(H)2000mm

Weight

2000KG







Carton packing machine Main Technical Parameters



Model

SYZ-120

Encasing speed

30-100 Cartons/min

Sachet quantity

1-12 bags, Base on sachet or pouch size

Carton

Quality requirement

250-350g/m², Base on carton size

Dimension range(LxWXH)

(70-180)mm×(35-85)mm×14-50)mm

Leaflet

Quality requirement

60-70g/m²

Unfolded leaflet specification

(80-250)mm×(90-170)mm

Fold range

【1-4】 Fold

Compressed air

Working pressure

≥0.6Mpa

Air consumption

260-300L/min

Power supply

220V 50Hz

Motor power

2.2kw

Machine dimension (L×W×H)

4200mm×1050mm×1600mm

Machine weight

1600kg

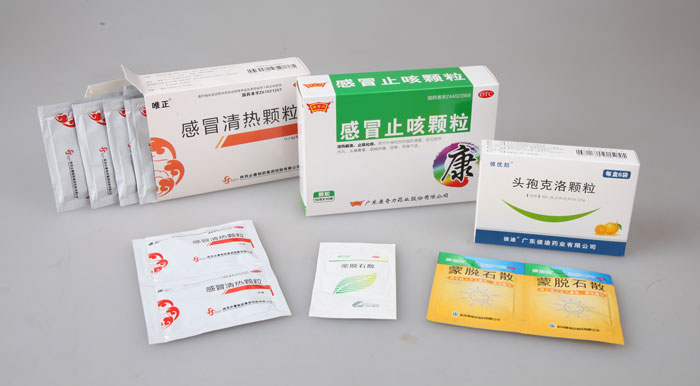

Sample
