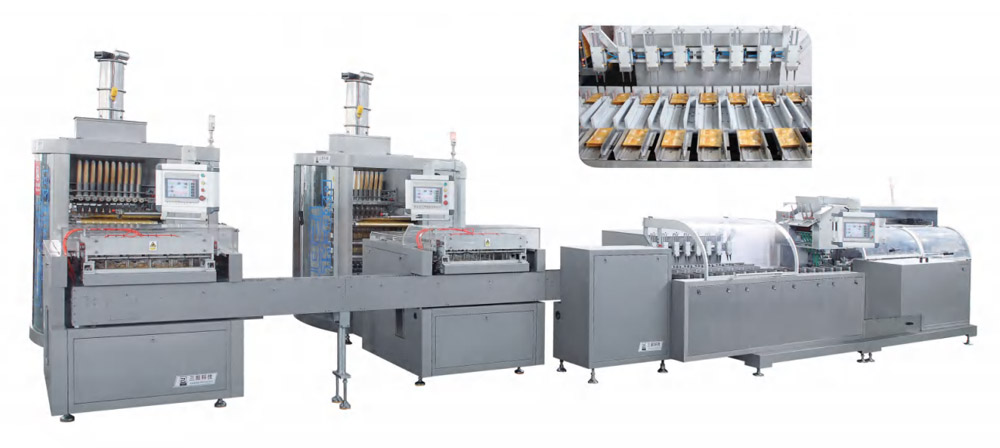

The fully automatic high-speed granule packaging production line is suitable for the packaging of loose, non-sticky granular materials in the pharmaceutical, food, daily chemical and other industries. The materials are automatically loaded into small bags according to the metering requirements, such as Chinese medicine granules, coffee, etc.; crystalline materials such as monosodium glutamate, sugar, salt, etc.; low-heat materials such as Chinese patent medicine, medicine, etc.
SANYANG fully automatic high-speed granule packaging production line is suitable for packaging non-sticky granular materials and has a high degree of automation.
- Automatic vacuum feeding to bag sealing is completed in one go.
- Meets GMP production requirements and effectively saves labor costs.
- Additional equipment can be freely selected for combination.
- Servo motor control, packaging speed up to 60 times/minute.
DXD-K1200E
| Pouch length range | 50-150mm |
| Pouch width range | 40-105mm |
| Packing speed | 40-60 times/min |
| Filling capacity | 0.5-50ml |
| Max film width | 1200mm |
260 Cartoning Machine
| Running speed | 60-220 boxes/min | |
| Carton | Quality requirement | 250-300g/m² |
| Dimension range | (65-200)×(25-85)×(14-70)mm | |
| Leaflet | Quality requirement | 60-70g/m² |
| Size of unfolded leaflet | (110-260)×(100-180)mm | |
DXD-KL1200G Production Line
| Weighing Accuracy | 0.02g |
| Total capacity | 100-180 boxes/min |
| Power supply | 380V 50Hz |
| Total power | 42KW |
| Compressed air | Working pressure 0.7Mpa |
| Air consumption 0.8m3/Min |
